Flanged Ends Bronze Globe Steam Stop Valve

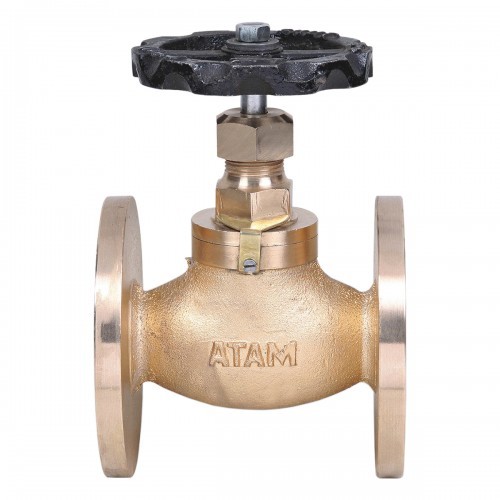

Name: Flanged Ends Bronze Globe Steam Stop Valve
Brand: AMCO INDUSTRIES

Get a Price/Quote

MOQ : 10 Pieces

Flanged Ends Bronze Globe Steam Stop Valve Specification

Valve Type
Steam Stop Valve

Connection Type
Flanged

Features
Corrosion resistance, Precise control, Durable construction

Valve Size
15 mm to 200 mm

Material
Bronze

Control System
Manual handwheel operated

Structure
Globe Valve

Voltage
Not Applicable (Manual)

Application
Steam, water, oil and other non-corrosive fluids control

Sealing
Renewable Composition

Type
Flanged Ends

Power
Manual Operation

Pressure
Up to 16 kg/cm (PN16)

Media
Steam, Water, Oil

Port Size
Full Bore

Temperature
Up to 225C

Disc
Bronze

Pin
Stainless Steel

Bonnet Material
Bronze

Test Pressure
Hydrostatic Tested at 1.5 times rated pressure

Packing
Graphited Asbestos

Stem Design
Rising Stem

End Connection Standard
Flanged as per BS/IS standards

Seat Material
Bronze (Renewable)

Handwheel Material
Cast Iron / Mild Steel

Face to Face Dimension
As per BS:5154

Size Range
(15 mm) to 8 (200 mm)

Flow Type
Unidirectional

Leakage Class
Class I

Pressure Class
PN 16

Operation
Handwheel Manual

Body Material
IS:318 LTB 2 Bronze

Surface Finish
Shot Blasted/ Painted

Mounting Position
Horizontal / Vertical

Stem Material
Stainless Steel

Flanged Ends Bronze Globe Steam Stop Valve Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
LUDHIANA AND BOMBAY

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
100 Pieces Per Day

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Within a certain price range free samples are available

Packaging Details
As per customers requirements

Main Export Market(s)
Eastern Europe, Australia, North America, Western Europe, Central America, South America, Asia

Main Domestic Market
All India

Certifications
AN ISO 9001:2008 AND 14001:2004 CERTIFIED COMPANY

About Flanged Ends Bronze Globe Steam Stop Valve

With the assistance of our team of professionals, we are engaged in providing an assorted range of Flanged Ends Bronze Globe Steam Stop Valve. This valve is manufactured using premium quality raw materials keeping in mind international quality standards. The offered valve is known for features like accurate dimensions, corrosion resistance, high strength, strong construction, easy installation and durability. This Flanged Ends Bronze Globe Steam Stop Valve is stringently tested on various parameters under the supervision of our quality controllers to ensure its high performance.

Engineered for Demanding Applications

This globe steam stop valve is specifically designed for control in various demanding environments such as steam pipelines, water systems, and oil handling industries. Its full-bore and unidirectional flow characteristics facilitate efficient fluid management, and the valve's robust bronze construction enhances resistance to corrosion, allowing for long-term operation in challenging settings.

Precision Control and Manual Operation

Equipped with a rising stainless steel stem and a manually operated handwheel, the valve offers reliable and accurate regulation of flow. The renewable bronze seat ensures ease of maintenance and long operational life, while the shot-blasted or painted finish adds a layer of durability for both indoor and outdoor installations.

Globally Recognized Standards and Safety

Designed and manufactured to meet strict BS/IS norms, this valve guarantees consistent quality and safety. Each unit undergoes hydrostatic testing at 1.5 times its rated pressure for leak-proof performance (Class I). Its versatile mounting options (horizontal or vertical) and full bore design offer flexibility and straightforward integration into new or existing systems.

FAQ's of Flanged Ends Bronze Globe Steam Stop Valve:

Q: How is the Flanged Ends Bronze Globe Steam Stop Valve installed in a pipeline?

A: The valve features flanged ends designed according to BS/IS standards, enabling easy installation between pipeline flanges. It can be mounted in either a horizontal or vertical position, accommodating a range of system configurations.

Q: What processes is this steam stop valve suitable for?

A: This valve is ideal for controlling the flow of steam, water, oil, and other non-corrosive fluids in industrial, HVAC, and utility systems. Its robust construction and corrosion-resistant materials make it suitable for demanding environments requiring precise flow regulation.

Q: When should the renewable seat of the valve be replaced?

A: The renewable bronze seat should be inspected and replaced during regular maintenance if signs of wear or leakage are detected. This extendable feature allows for easy serviceability and helps prolong the valve's overall life span.

Q: Where can this valve be used within a facility?

A: The valve can be used on main steam lines, water distribution systems, and oil control pipelines in both industrial plants and commercial facilities. Its broad size range accommodates various applications, from small process lines to large distribution networks.

Q: What are the key benefits of using this bronze globe valve?

A: Main benefits include corrosion resistance, precise manual flow control, durable bronze and stainless steel construction, and compliance with international standards for pressure and safety. Its full-bore design ensures optimal flow with minimal loss.

Q: How is the valve's leakage class verified?

A: The valve undergoes hydrostatic testing at 1.5 times its rated working pressure to ensure it meets Leakage Class I, indicating tight shut-off and reliable sealing for critical applications.

Q: Which fluids can the Flanged Ends Bronze Globe Steam Stop Valve safely control?

A: It is engineered to handle steam, water, oil, and other non-corrosive fluids at pressures up to 16 kg/cm2 and temperatures up to 225C, making it highly versatile for industrial fluid management.
